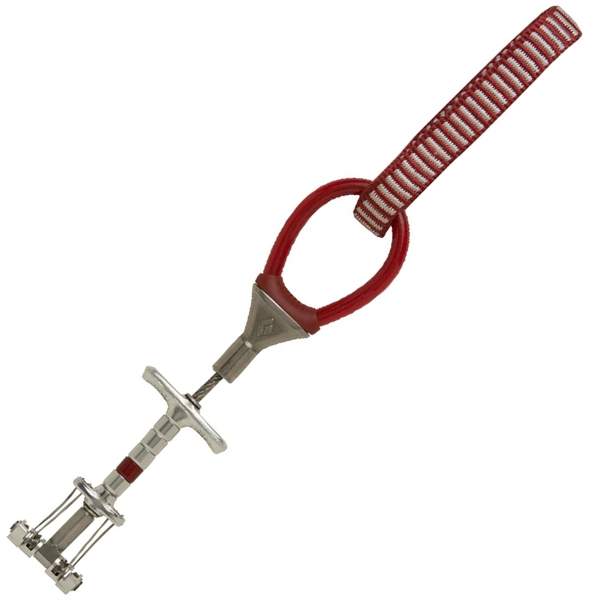

The world's best-selling, most trusted cam just got better. The new, redesigned Camalot C4 has now upped the ante, considering it’s 10% lighter yet just as durable as before. Plus, it features a modern design that improves on the old tried-and-true Camalots. The cam's lobes are lighter and more sculpted, optimized for strength to weight, while the slings have a visual update for easier differentiation when racking. And speaking of racking, we're introducing a new innovative trigger keeper on sizes #4, #5, #6, #7, and #8 that keeps the big guys contracted for compact racking and immediately release when you’re ready to place. We've also widened the trigger as well for better handling.
Features
- New design is 10% lighter
- Innovative trigger keeper on sizes #4, #5, #6, #7, and #8 for compact racking
- Double-axle design offers the widest range for each cam unit
- C-Loop continuous cable stem design is strong and durable
- LiteWire Rackpack available for easy racking (see Carabiners)
Specs
Display Weight
- [.3] 69.8 g (2.46 oz)
- [.4] 77.5 g (2.73 oz)
- [.5] 93 g (3.28 oz)
- [.75] 107.5 g (3.76 oz)
- [#1] 123.9 g (4.37 oz)
- [#2] 140.3 g (4.94 oz)
- [#3] 181.1 g (6.38 oz)
- [#4] 257.8 g (9.09 oz)
- [#5] 348.1 g (12.27 oz)
- [#6] 529.9 g (16.69 oz)
- [#7] 710 g (25 oz)
- [#8] 974 g (34.4 oz)
Range
- [.3] 13.8-23.4 mm (0.54-0.92 in)
- [.4] 15.5-26.7 mm (0.61-1.05 in)
- [.5] 19.6-33.5 mm (0.77-1.32 in)
- [.75] 23.9-41.2 mm (0.94-1.62 in)
- [#1] 30.2-52.1 mm (1.19-2.05 in)
- [#2] 37.2-64.9 mm (1.46-2.55 in)
- [#3] 50.7-87.9 mm (2.00-3.46 in)
- [#4] 66.0-114.7 mm (2.60-4.51 in)
- [#5] 85.4-148.5 mm (3.36-5.85 in)
- [#6] 114.1-195.0 mm (4.50-7.68 in)
- [#7] 150-253.5 mm (5.9-9.98 in)
- [#8] 193-321 mm (7.6-12.6 in)
Strength
- [.3] 8 kN (1,798 lbf)
- [.4] 9 kN (2,023 lbf)
- [.5] 12 kN (2,698 lbf)
- [.75] 12 kN (2,698 lbf)
- [#1] 12 kN (2,698 lbf)
- [#2] 12 kN (2,698 lbf)
- [#3] 12 kN (2,698 lbf)
- [#4] 14 kN (3,147 lbf)
- [#5] 14 kN (3,147 lbf)
- [#6] 14 kN (3,147 lbf)
- [#7] 8 kN (1,798 lbf)
- [#8] 5 kN (1,124 lbf)
